●产品特征：

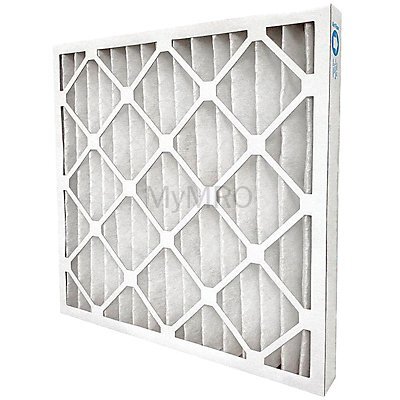

Pleated Air Filter Style - Air Filters Panel Performance Rating MERV 13 Nominal Filter Size 12x24x2 Filter Efficiency - Air Filters 85 Percent Air Filter Capacity High Capacity Media Material Synthetic Frame or Header Material Beverage Board Common Applications LEED/Green Media Color White Media Area 8.8 sq ft Pleats per Linear Foot 15

●用途:
Actual Filter Size:11-3/8 in x 23-3/8 in x 1-3/4
Actual Height:11 3/8 in
Air Filter Capacity:Standard Capacity
Air Flow @ 300 fpm:600 cfm
Filter Efficiency - Air Filter:85 %
Filters Out:MERV 13-16 All Bacteria
Final Recommended Resistance:1.0 in in wc
Frame or Header Material:Beverage Board
Gasket Location:None
Initial Resistance @ 300 fpm:0.22 in wc
Initial Resistance @ 500 fpm:0.37 in wc
Max. Temp.:180 Degrees F
Performance Rating:MERV 13
Pleats per Linear Foot:14
Removes Particles Down To:1.0 to 3.0 microns
Style - Air Filters:Panel
Actual Width:23 3/8 in
Air Filter Item:Pleated Air Filter
Air Flow @ 500 fpm:1
Common Applications:LEED/Green
Filter Frame Color:White
Gasket Material:None
Max. Velocity:500 fpm
Media Area:8.8 sq ft
Media Color:Green
Media Material:Synthetic
Nominal Depth:2 in
Nominal Filter Size:12x24x2
Nominal Height:12 in
Nominal Width:24 in
